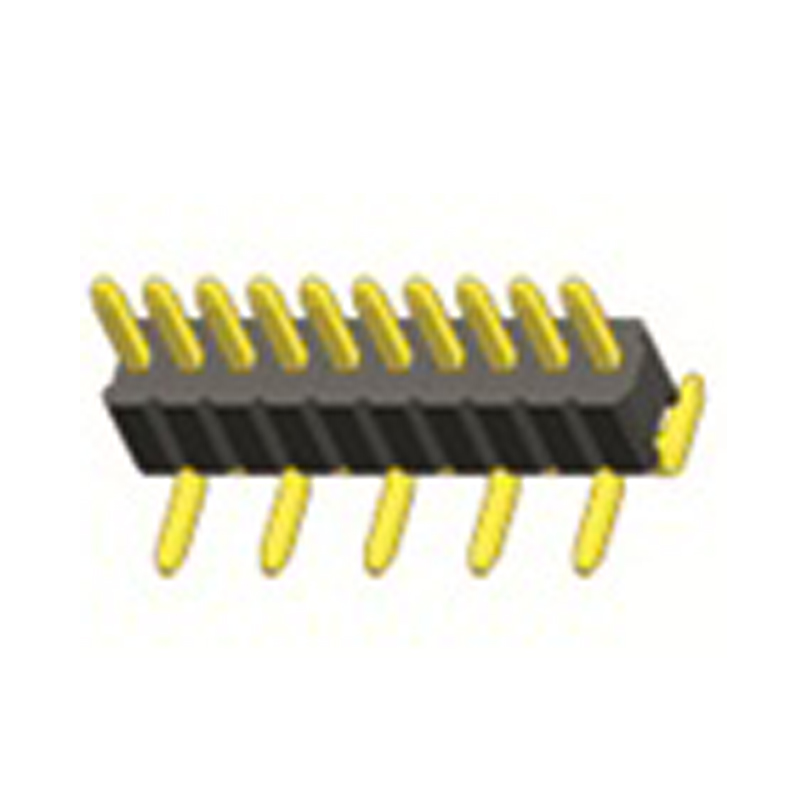

1.27mm Pin Header H=2.5 Single Row Right Angle SMT Type With Post

1.27mm Pin Header H=2.5 Single Row Right Angle SMT Type With Post


    Part No: 1325-11XXXXZXXXCXXX

    Mating: 2320T/2321/2334/2344

    Packing: Tube,T&R

    Delivery time: 20~25 Day

    UL: Yes

    ROHS Compliant


Inquire Now
Product Details
2D(PDF) Drawing 3D(IGS / STP) Drawing Approval Specification
Rated Current1.0AMP
Contact   Resistance20mΩ   Max
Withstand   Voltage500V   AC/DC
Insulation   Resistance1000MΩ Min
Operation   Temperature﹣40℃   to +105℃
Contact   MaterialBrass
Contact   PlatingAu Or Sn over Ni
Insulator   MaterialPA9T   Black+30％G.F UL94V-0
