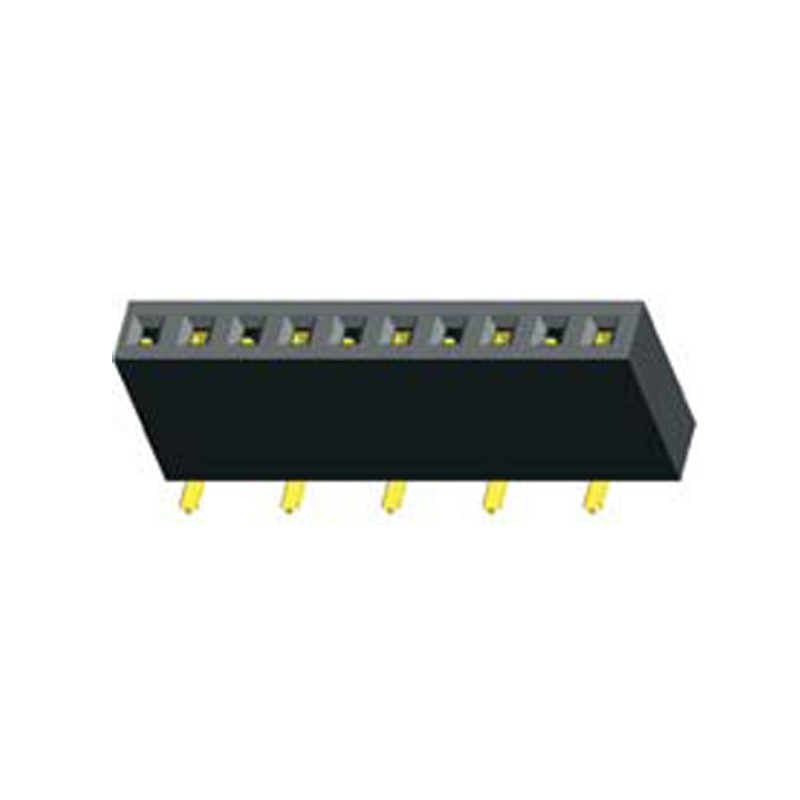

2.54mm Female Header H=3.5 Single Row Bottom Entry Type

2.54mm Female Header H=3.5 Single Row Bottom Entry Type

    Part No: 2135-1XXWXXCUNXX

    Mating: 1115/1120/1125

    Packing: Tube

    Delivery time: 20~25 Day

    UL: Yes

    ROHS Compliant



Inquire Now
Product Details
2D(PDF) Drawing 3D(IGS / STP) Drawing Approval Specification
Current   Rating3.0AMP
Contact Resistance20mΩ   Max
Withstand Voltage1000V   AC/DC
Insulation Resistance1000mΩ   Min
Operation Temperature﹣40℃   to +105℃
Contact MaterialPhosphor   Bronze
Contact PlatingAU   Or Sn over Ni
Insulator MaterialLCP+30％GF UL94V-0
