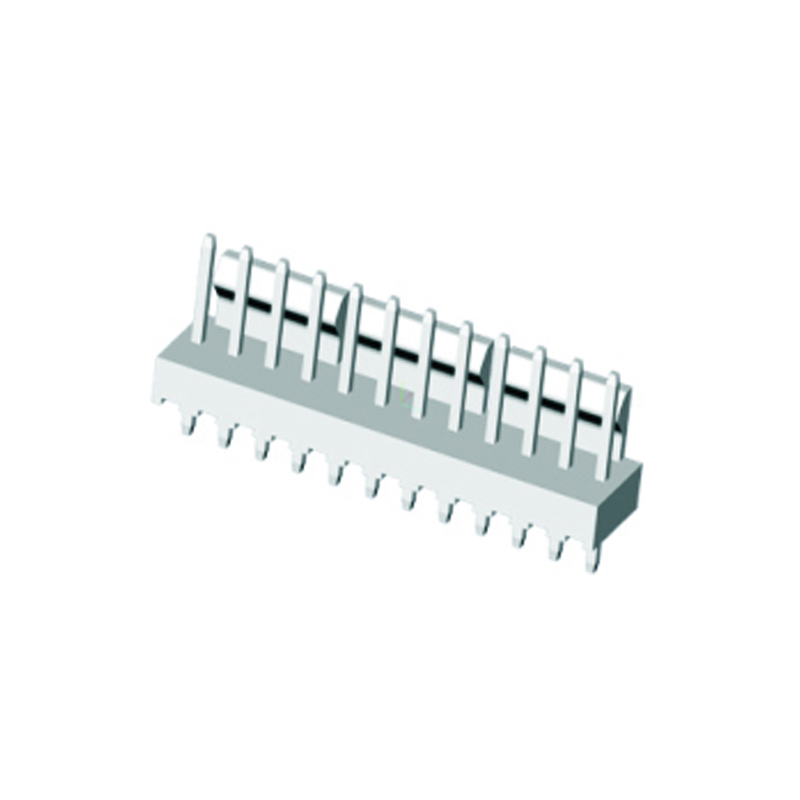

2.54mm Wafer Straight Type

2.54mm Wafer Straight Type

    Part No: WF2549-2WSXXS0E01

    Mating:  WF2549-2H WF2549-T

    Packing: Bag

    Delivery time: 20~25 Day

    UL: Yes

    ROHS Compliant



Inquire Now
Product Details
2D(PDF) Drawing 3D(IGS / STP) Drawing Approval Specification
Current   Rating3.0AMP
Contactt Resistance20mΩ   Max
Withstand Voltage1000V   AC minute
Insulation Resistance1000mΩ   Min
Operation Temperature﹣55℃ to +105℃
Contact   MaterialBrass
Contact   Plating Sn over Ni
Insulator MaterialPolyester   (UL94V-0)
StandardLCP
