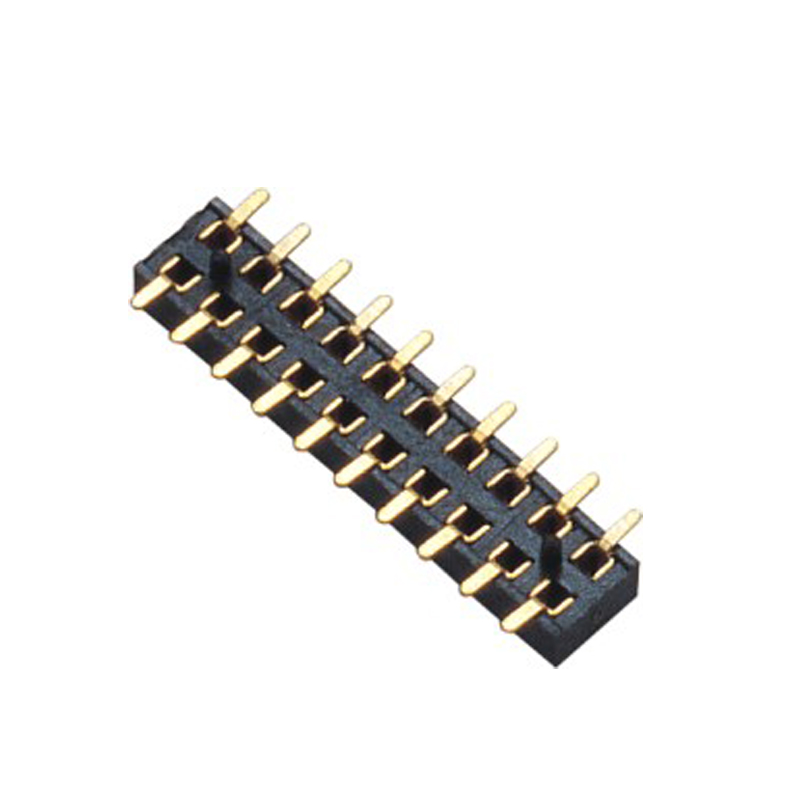

2.0mm Female Header H=3.56 Dual Row CLAMP Type

2.0mm Female Header H=3.56 Dual Row CLAMP Type

    Part No: 2235-2XXCG0CUNTX

    Mating:

    Packing: Tube

    Delivery time: 20~25 Day

    UL: Yes

    ROHS Compliant



Inquire Now
Product Details
2D(PDF) Drawing 3D(IGS / STP) Drawing Approval Specification
Current   Rating2.0AMP
Contact Resistance20mΩ   Max
Withstand Voltage500V   AC/DC
Insulation Resistance1000MΩ   Min
Operation Temperature﹣40℃   to +105℃
Contact Materialphosphor   Bronze
Contact PlatingAu over Sn Over Ni
Insulator MaterialPA9T+30％GF   UL94V-0
