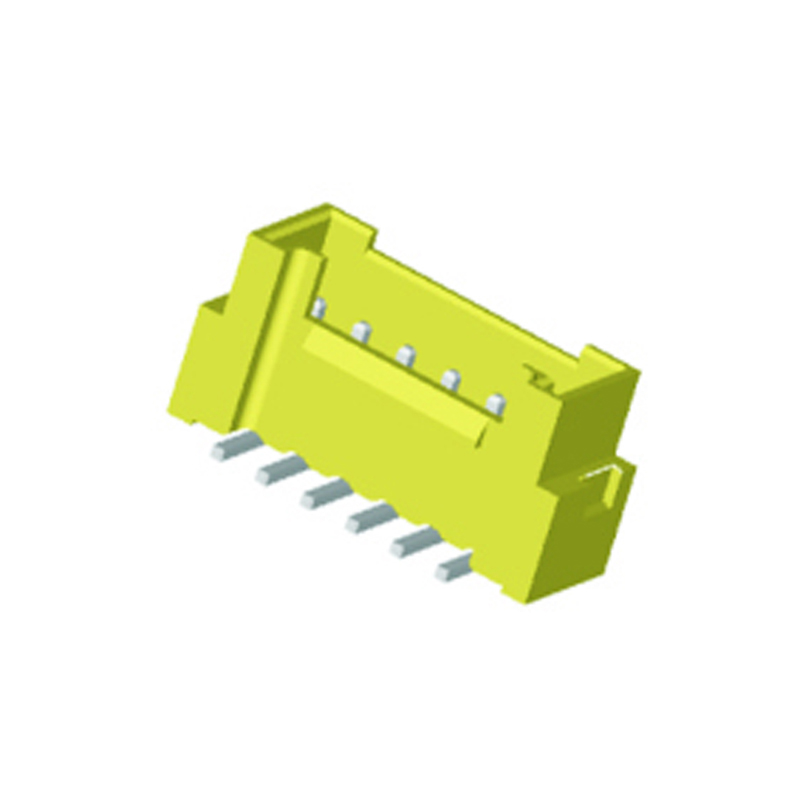

2.00mm Wafer Right Angle  Type

2.00mm Wafer Right Angle Type

    Part No:WF2006A-WZXXE01

    Mating:WF2006-H WF2006-T

    Packing: Bag

    Delivery time: 20~25 Day

    UL: Yes

    ROHS Compliant



Inquire Now
Product Details
2D(PDF) Drawing 3D(IGS / STP) Drawing Approval Specification
Current  Rating1.0AMP
Contact  Resistance20mΩ   Max
Insulation Resistance500MΩ   Min
Withstand  Voltage250V   AC/Minute
Operation Temperature -25℃ to +85℃
Contact MaterialBrass
Contact platingSn   over Ni
Insulator MaterialPolyester   (UL94V-0)
StandardPA6T
