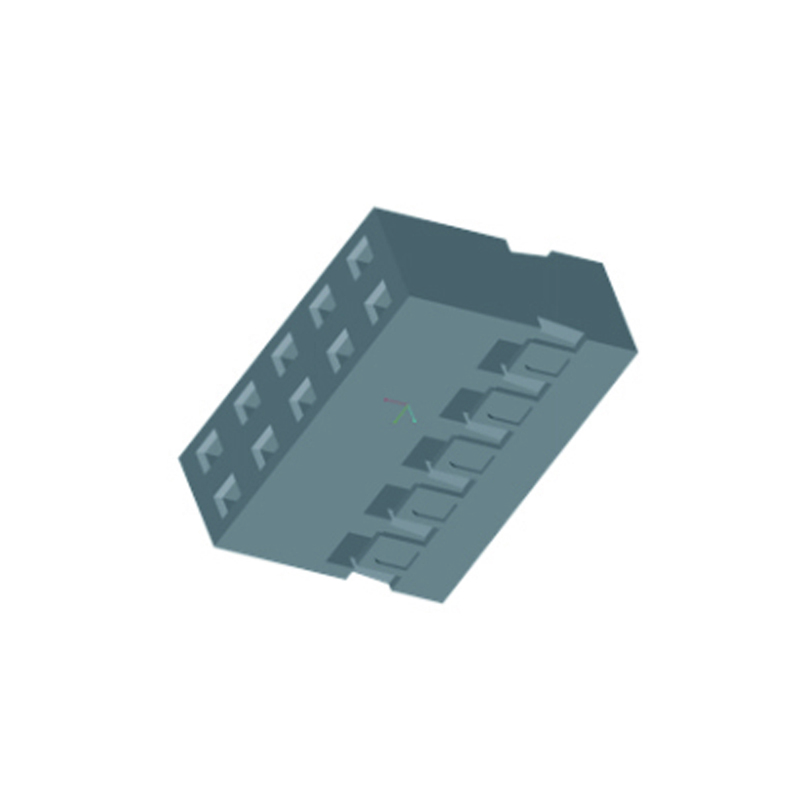

2.00mm Wafer Straight  Type

2.00mm Wafer Straight Type

    Part No:WF2008-WSXXET1

    Mating:WF2008-H WF2008-T

    Packing: Bag

    Delivery time: 20~25 Day

    UL: Yes

    ROHS Compliant



Inquire Now
Product Details
2D(PDF) Drawing 3D(IGS / STP) Drawing Approval Specification
Rated   Current 2.0AMP
Contact Resistance20mΩ   Max
Withstand Voltage800V   AC/DC
Insulation Resistance1000mΩ   Min
Operation   Temperature﹣25℃ to +85℃
Pin MaterialPhosphor Bronze
Contact   PlatingSn Over Ni
Insulator MaterialPolyester   UL94V-0
StandardPA6T
