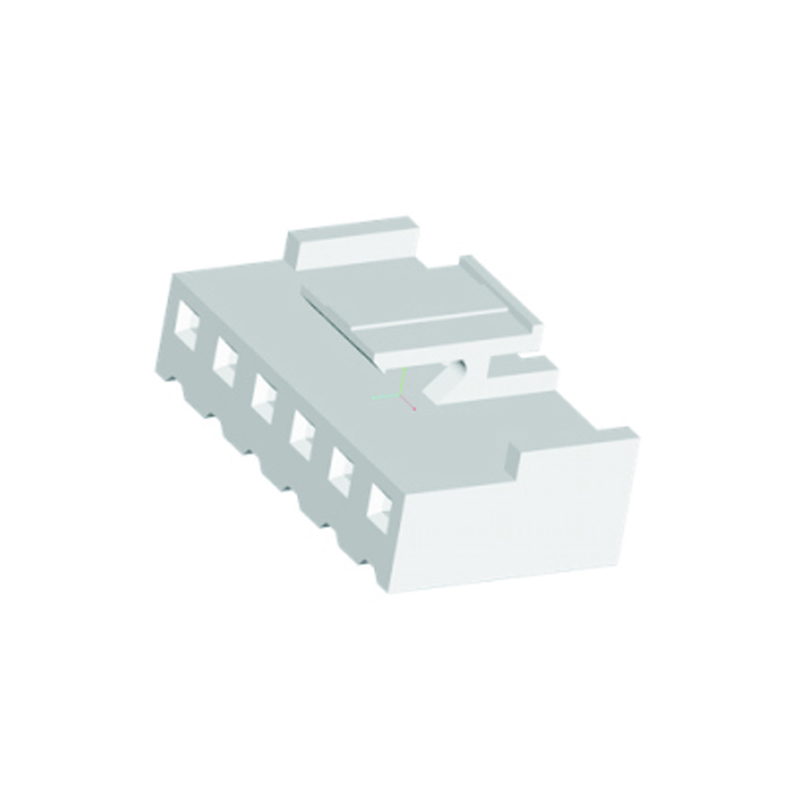

3.96mm Wafer IDC Type

3.96mm Wafer IDC Type

    Part No: WF3964B-HIXXT01&2&3&4

    Mating:

    Packing: Bag

    Delivery time: 20~25 Day

    UL: Yes

    ROHS Compliant



Inquire Now
Product Details
2D(PDF) Drawing 3D(IGS / STP) Drawing Approval Specification
Current   Rating 7.0AMP
Voltage Rating 600V   AC
Contact Resistance 10milliohm   Max
Withstand Voltage 2200V   AC/DC
Insulation Resistance 5000Megohm   Min
Operation Temperature   -25℃ to +85℃
MATERIAL/FINISH
Housing Material Nylon66   UL94V-0/2
Contact Material Brass
Contact platingSn   over Ni
