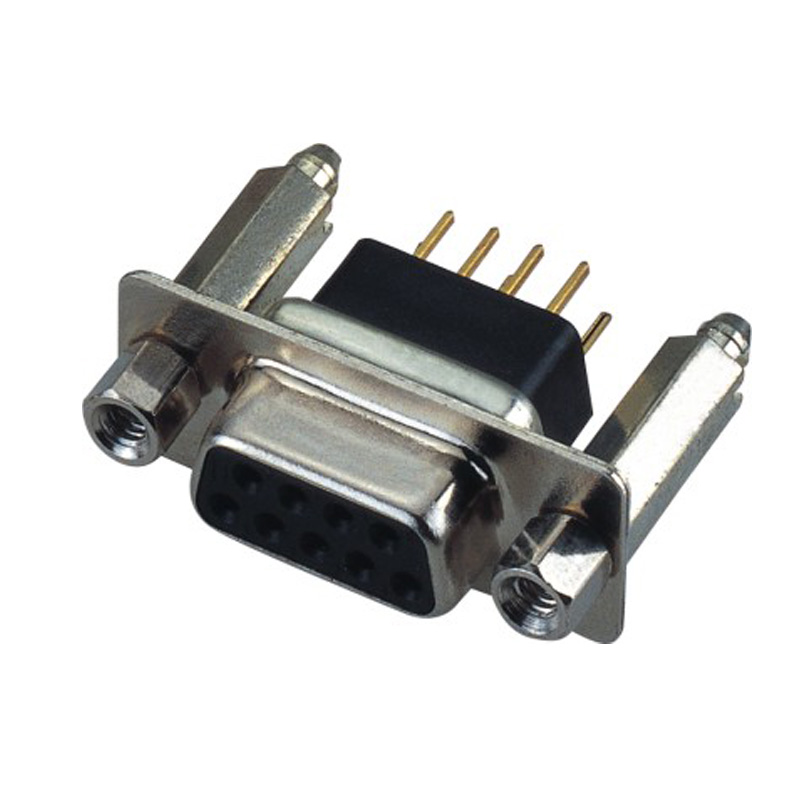

D-SUB Female Right Angle Type 14.84mm Footprint

D-SUB Female Right Angle Type 14.84mm Footprint

    Part No: 6223C-XXFXNS0B01

    Mating:6223C-XXM

    Packing: Tray

    Delivery time: 20~25 Day

    UL: Yes

    ROHS Compliant



Inquire Now
Product Details
2D(PDF) Drawing 3D(IGS / STP) Drawing Approval Specification
1.   Currenr Rating3.0AMP
2. Contact Resistance25mΩ   Max
3. Withstand Voltage500V   AC/DC
4. Insulation Resistance1000MΩ   Min
5. Operation Temperature﹣55℃   to +105℃
6. Contact MaterialBrass
7. Contact PlatingAu over Ni
8. Insulator MaterialPBT+30%GF   UL94V-0
9. ShellSteel,  Sn or Ni Plated
10.NutBrass, Sn or Ni Plated
