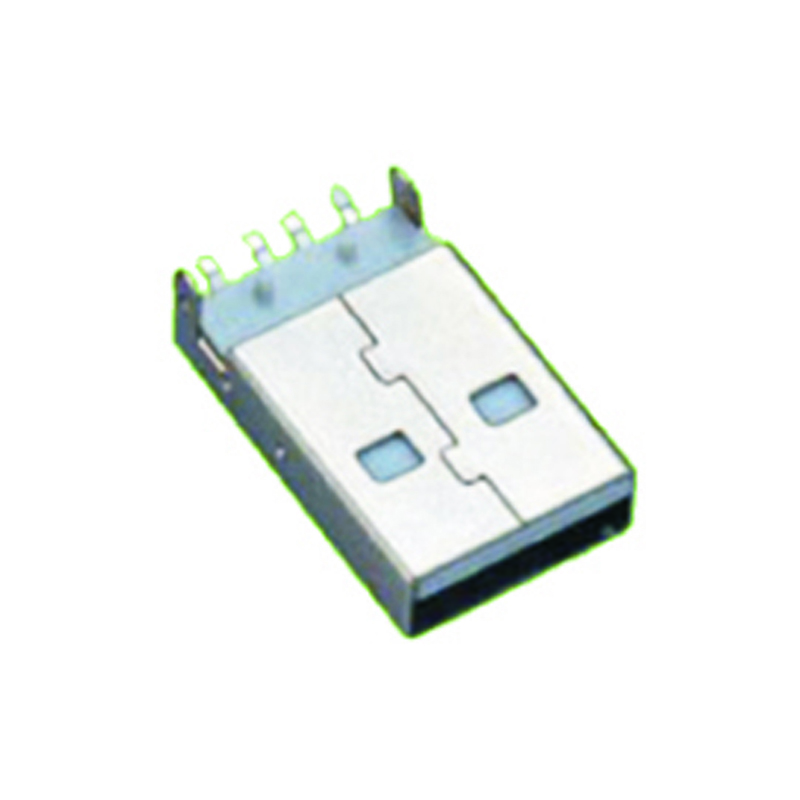

USB 3.0 A Type Male Right Angle SMT

USB 3.0 A Type Male Right Angle SMT

Part No: 6112-09AMRMSXXWA1

Mating:

Packing: Tray

Delivery time: 20~25 Day

UL: Yes

ROHS Compliant

Inquire Now

Product Details

2D(PDF) Drawing 3D(IGS / STP) Drawing Approval Specification

Current Rating	1.5AMP
Contact Resistance	30mΩ Max
Insulation Resistance	1000MΩ Min
Dielectric Withastanding Voltage	500V R.M.S
Operation Temperature	﹣40℃ to +85℃
Mating Force	3.57kg. Min
Mating Force	1.02kg.min
Durability Mandatory	5000Cycles
Contact Material	Phosphor Bronze
Insulator Material	LCP+30%G.F UL94V-0
